Basic information

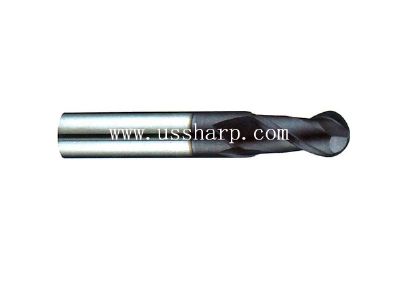

Name: Solid Carbide Ball End Mills 2F

Model: CMBL452

Remark:

2 Flutes, 35°Helix Angle, Center Cutting, TiAlN coated.
Mainly for profiling and concave surface milling operations. Out-standing surface finishes.
Suitable for cutting pre-hardened tool steel, general steel, cast iron, etc, whose hardness are up to 50 HRC.

Product details
  • Mills are made of fine grain solid carbide which has very high hardness up to 92 HRA, and can remains its hardness in very high cutting temperature. Due to carbide has good thermal conductivity and chemical stability, it keeps mills good cutting performance up to 1000°C, with good anti-adhesive performance. Cutting area are coated with TiAlN, it enables mills a higher wear resistance and hardness. Mills are best suited for applications in medical, die, mould, automotive and general engineering fields.

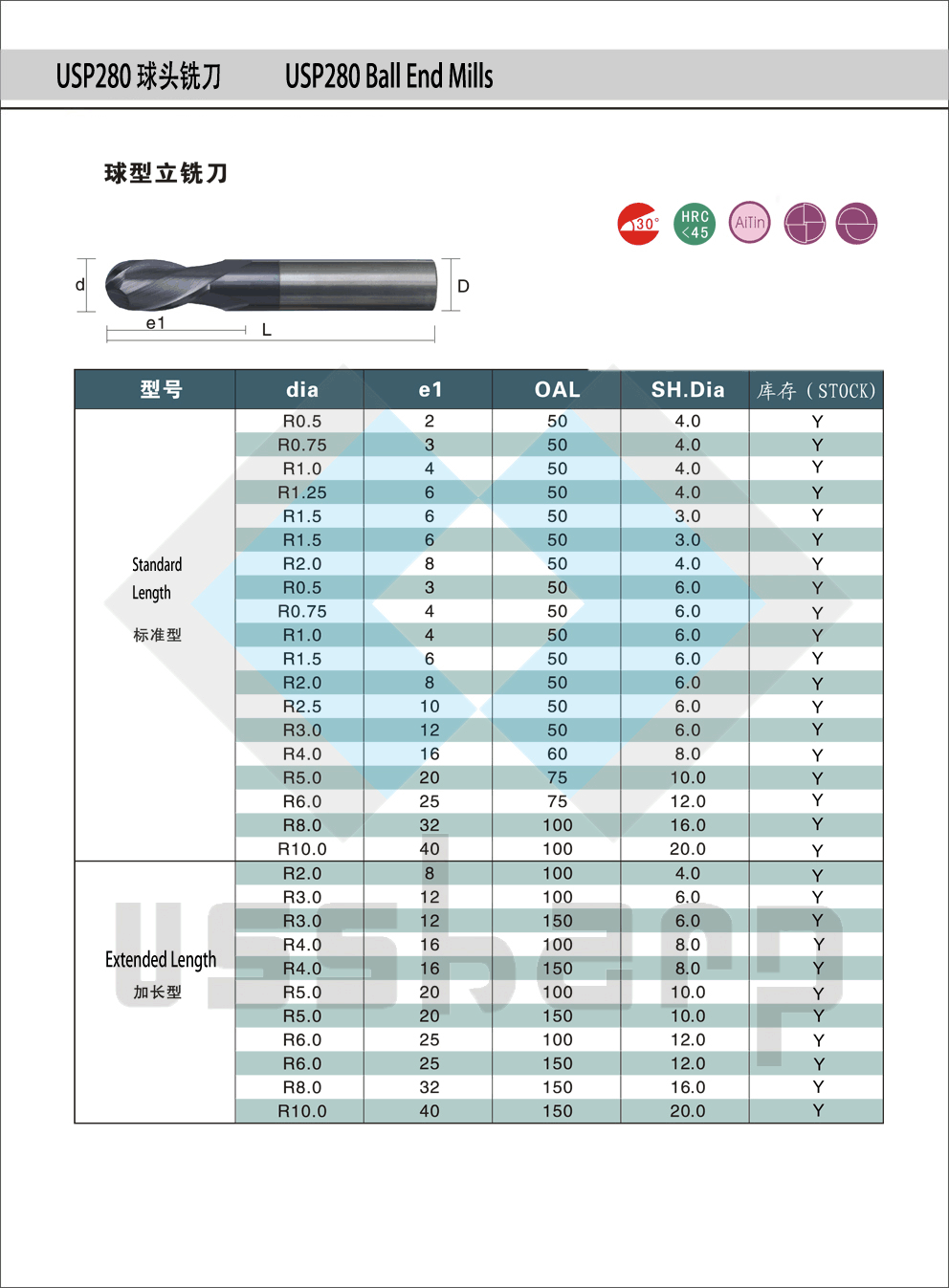

    The common sizes of Mills are listed in below chart.

    Customized sizes of products are available, please feel free to provide your requirements.
