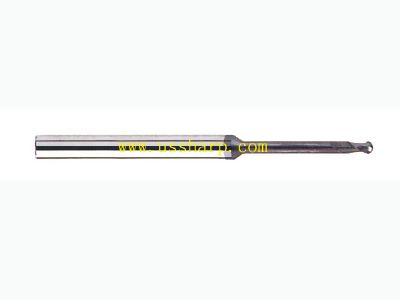

Name: Long-Neck Micro-Diameter Ball End Mills 2FL-

Model: CMMNSG-BL

Remark:

2 Flutes, 35°Helix Angle, Center Cutting, TiAlN coated, Extended neck.
Specially for deep & small slotting and pocket (Bowl bottom) milling operations.
Suitable for cutting Carbon Steels, Alloy Steels, Pre-hardened Steels, Cu Alloys, etc, whose hardness are up to 50 HRC.

Product details
  • Mills are made of micro grains of WCTiC and Cobalt, this carbide has very high hardness up to 92.8 HRA, and Carbide has good thermal conductivity and chemical stability, Mills can keep their hardness in very high cutting temperature, with good cutting performance and good anti-adhesive performance up to 1000°C. Cutting area are coated with fine TiAlN, it enables mills a excellent wear resistance and hardness. Mills are best suited for applications in aerospace, medical, die, mould, automotive and general engineering fields.

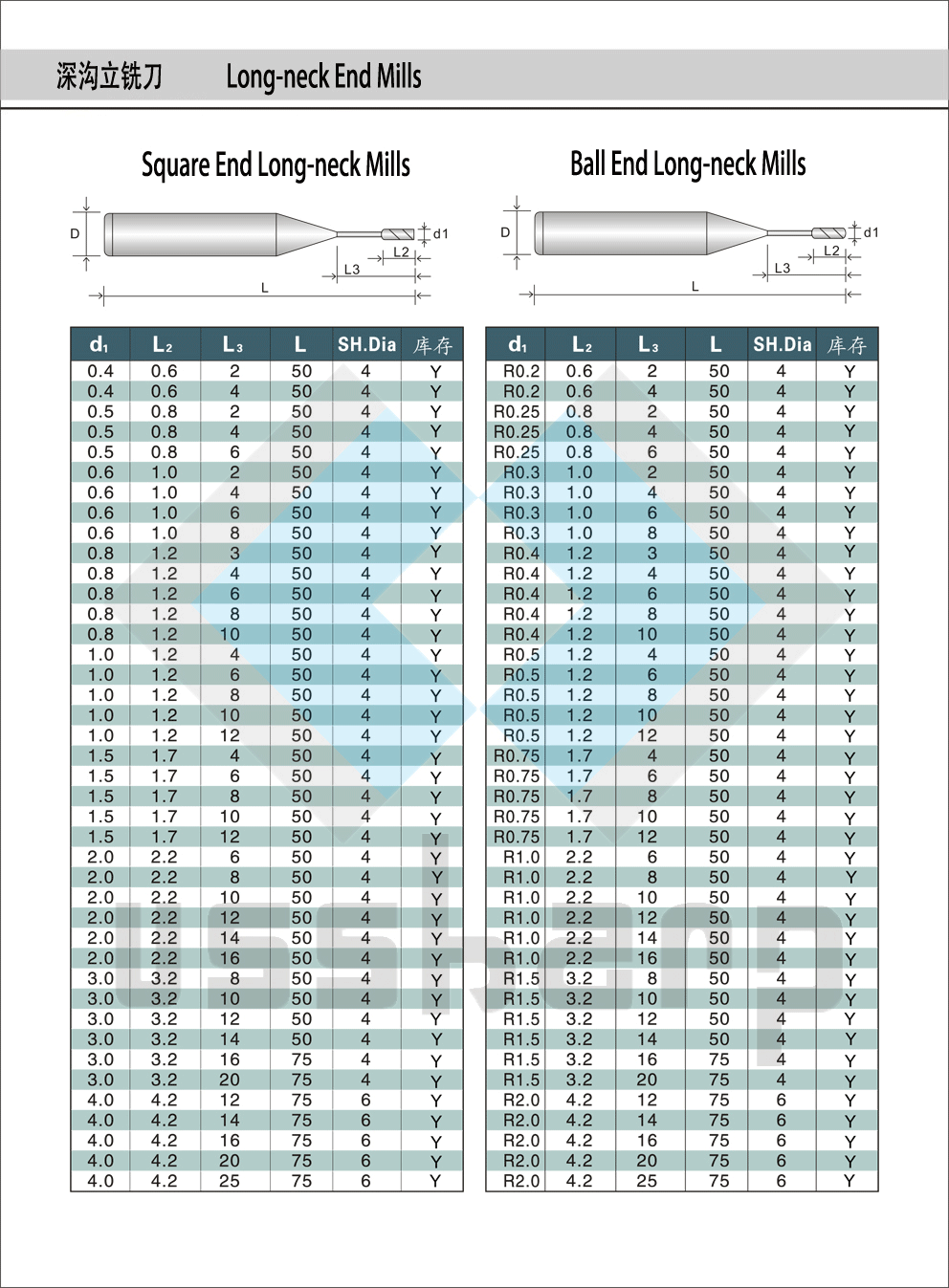

    The common sizes of Mills are listed in below chart.

    Customized sizes of products are available, please feel free to provide your requirements.
