Product
-
Basic information

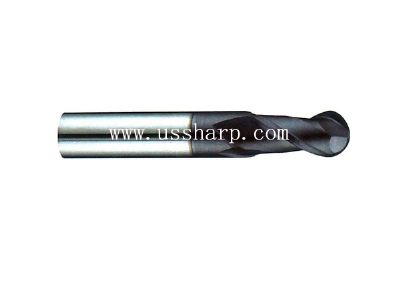

Name: Micro Grain Carbide Ball End Mills 2F
Model: CMBL502
Remark:
2 Flutes, 35°Helix Angle, Center Cutting, TiAlN coated.
Special geometry design for cutting high hardness workpiece.
Mainly for profiling, slotting and concave surface milling operations. Out-standing surface finishes.
Suitable for cutting Carbon Steels, Tool Steels, Alloy Steels, Pre-hardened Steels, Mold Steels, Hardened Steels etc, whose hardness are up to 60 HRC.
Product details
-
Mills are made of micro grains of WC,TiC and Cobalt, this carbide has very high hardness up to 93.2 HRA, and Carbide has good thermal conductivity and chemical stability, Mills can keep their hardness in very high cutting temperature, with good cutting performance and good anti-adhesive performance up to 1000°C. Cutting area are coated with fine TiAlN, it enables mills a excellent wear resistance and hardness. Mills are best suited for applications in aerospace, medical, die, mould, automotive and general engineering fields.

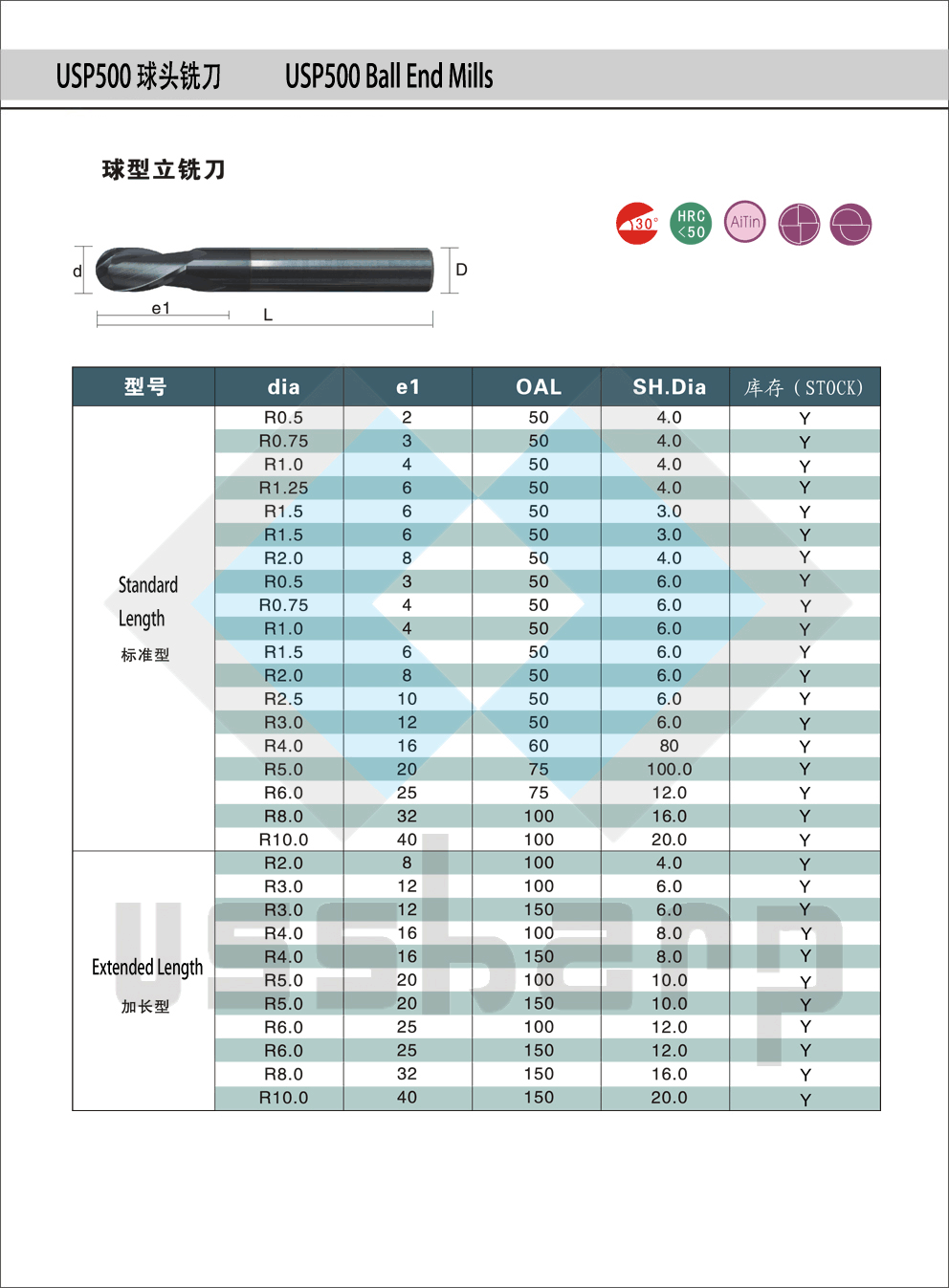

The common sizes of Mills are listed in below chart.
Customized sizes of products are available, please feel free to provide your requirements.
