Basic information

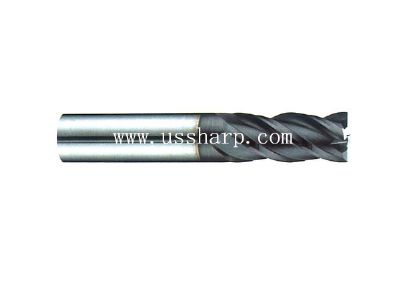

Name: Micro Grain Carbide Corner-Radius End Mills 4F

Model: CMCR504


4 Flutes, 35°Helix Angle, Center Cutting, TiAlN coated.
Special geometries are designed for cutting high hardness workpiece, with corner-radius for better protection, for long life.
Mainly for slotting, side milling and surface milling operations.
Suitable for cutting Carbon Steels, Tool Steels, Alloy Steels, Pre-hardened Steels, Mold Steels, Hardened Steels etc, whose hardness are up to 60 HRC.

Product details
  • Mills are made of micro grains of WCTiC and Cobalt, this carbide has very high hardness up to 93.2 HRA, and Carbide has good thermal conductivity and chemical stability, Mills can keep their hardness in very high cutting temperature, with good cutting performance and good anti-adhesive performance up to 1000°C. Cutting area are coated with fine TiAlN, it enables mills a excellent wear resistance and hardness. Mills are best suited for applications in aerospace, medical, die, mould, automotive and general engineering fields.

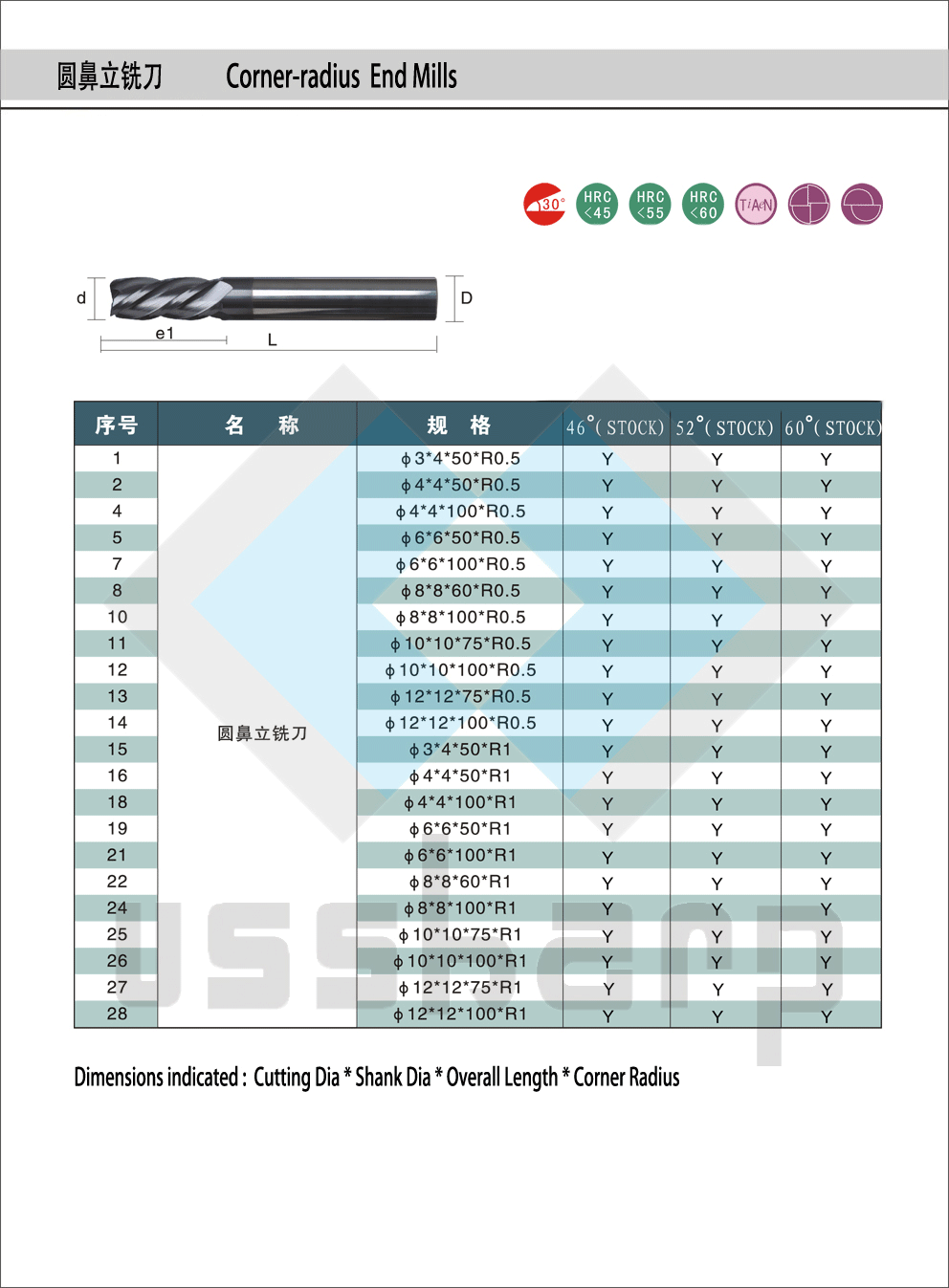

    The common sizes of Mills are listed in below chart.

    Customized sizes of products are available, please feel free to provide your requirements.
